Product Parameters:
General Information
• Operating Weight: 47,300-53,100kg
• Bucket Capacity: 1.77-3.8m³
• Power System: Engine Model: D13F; Rated Power: 270kW/1,800rpm; Displacement: 12.8L; Cylinder Bore×Stroke: 131mm×158mm; Max. Torque: 1,836N·m/1,400rpm; Cylinder Number: 6
Dimensions
• Transport Length: 11,630mm
• Transport Width: 3,340mm
• Cab Height: 3,257mm
• Counterweight Ground Clearance: 1,275mm
• Minimum Ground Clearance: 550mm
• Tail Swing Radius: 3,880mm
• Track Gauge: 2,740mm
• Track Shoe Width: 600mm
Performance
• Swing Speed: 8.8rpm
• Travel Speed: 3.1/5.1km/h
• Max. Traction Force: 330kN
• Max. Digging Reach: 13,260mm
• Max. Digging Depth: 9,170mm
• Max. Digging Height: 10,600mm
• Max. Dumping Height: 6,970mm
• Max. Vertical Digging Depth: 5,990mm
• Bucket Digging Force, SAE J1179 (Normal): 230kN
• Bucket Digging Force, SAE J1179 (Boost): 251kN
• Stick Digging Force, SAE J1179 (Normal): 160kN
• Stick Digging Force, SAE J1179 (Boost): 174kN
Hydraulic System
• Main Pump Max. Flow: 2×358L/min
• Travel Hydraulic Circuit Pressure: 32.4MPa
• Swing Hydraulic Circuit Pressure: 25.8MPa
• Pilot Oil Circuit Pressure: 3.9MPa
• Pilot Pump Flow: 1×32L/min
Oil Capacity
• Fuel Tank Capacity: 685L
• Hydraulic Oil Tank Capacity: 270L
• Engine Oil Change Volume: 42L
• Coolant Capacity: 60L
Track Components
• Track Roller Number (One Side): 2
• Carrier Roller Number (One Side): 9
• Track Shoe Number (One Side): 52
Payment /shipping terms
Minimum Order Quantity:1 unit
Price:$65,000
Payment Terms :T/T, L/C
Shipping Details:container, bulk cargo, flat rack, RoRo ship
Delivery Time:7-15 days
Supply Ability:10 units per month

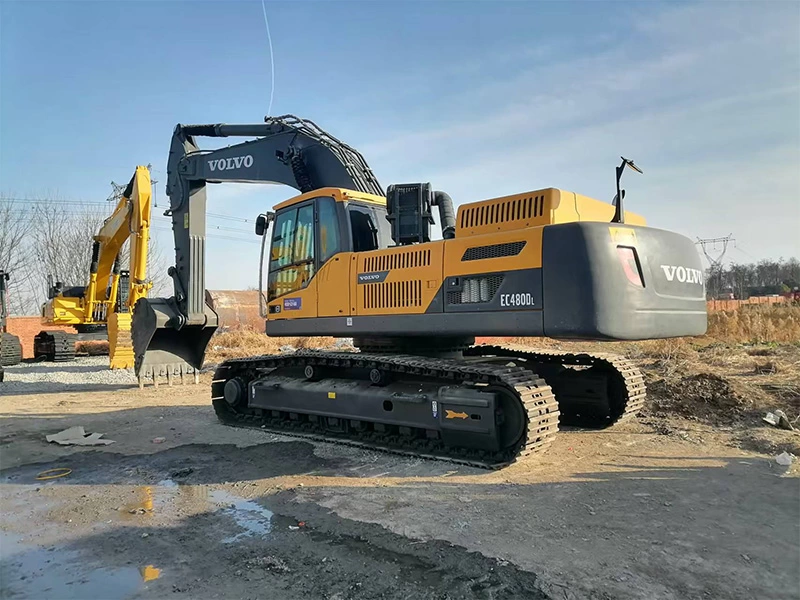

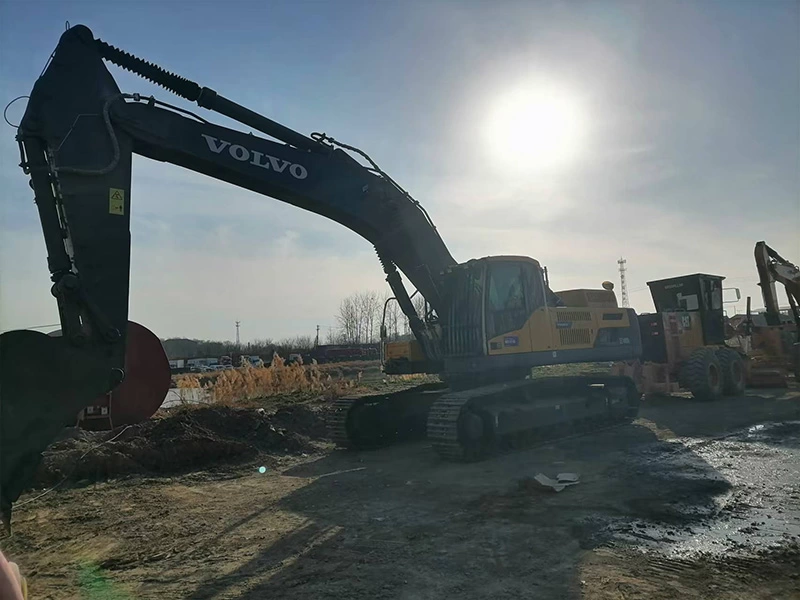

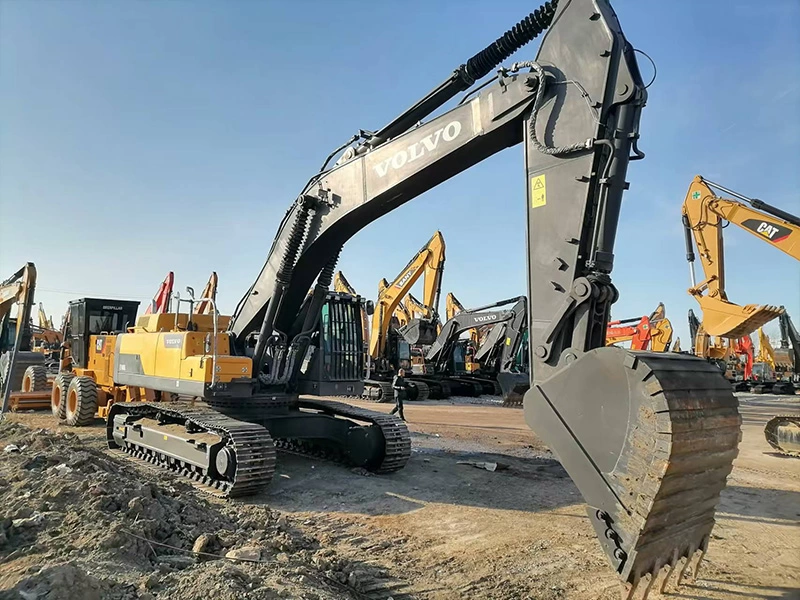

Detail Images:
Product Advantages:
Advantages of Volvo EC480DL Excavator
• Powerful Performance
• Equipped with a high-power D13F engine, it can provide strong power output, ensuring efficient operation in various heavy-duty working conditions. The advanced engine technology also contributes to better fuel economy, reducing operating costs while maintaining high productivity.
• Excellent Digging Capability
• With a large bucket capacity range of 1.77 – 3.8 m³ and high digging forces, it can easily handle different types of soil and materials. The precise control system allows for accurate and smooth digging movements, enhancing the overall work efficiency and quality.
• Comfortable Operating Environment
• The spacious and ergonomically designed cab provides a comfortable working space for the operator. Good visibility, adjustable seats, and advanced climate control systems reduce operator fatigue during long working hours, improving work concentration and safety.
• Reliable and Durable
• The sturdy construction and high-quality components used in the EC480DL ensure its durability and reliability. It can withstand the harsh working conditions of construction sites, reducing the frequency of breakdowns and maintenance, and increasing the uptime of the machine.
• Advanced Technology and Intelligence
• It incorporates advanced technologies such as intelligent control systems and monitoring functions. These features enable real-time monitoring of the machine’s performance and condition, providing timely alerts and diagnostic information to help operators and maintenance personnel better manage and maintain the excavator.
Conclusion
The Volvo EC480DL is a high-performance crawler excavator in the 48-ton class.
Powered by the Volvo D13F engine, it has a rated power of 270kW/1,800rpm. It generates strong power and high torque, with a maximum torque of 1,836N·m/1,400rpm. This ensures efficient operation in various tough working conditions.
The excavator is equipped with an advanced electronically controlled hydraulic system. It can provide accurate and smooth control, improve work efficiency, and increase fuel efficiency by more than 5% compared to the D series. The bucket capacity ranges from 1.77 to 3.8m³, and the digging forces are strong, with the bucket digging force (SAE J1179, normal/boost) reaching 230/251kN and the stick digging force (SAE J1179, normal/boost) reaching 160/174kN.
The Volvo EC480DL features a robust structure. The reinforced upper frame and lengthened and widened lower traveling body ensure excellent stability and safety. The cab is spacious and comfortable, equipped with ergonomic controls, good visibility, and multiple safety features such as anti-slip pedals and rear-view cameras.
In terms of maintenance, the EC480DL has convenient maintenance access. The filters and other maintenance parts are centrally arranged, and the single-module cooler can be easily accessed from the ground. With a long maintenance cycle of 5,000 hours for hydraulic oil replacement and 2,500 hours for hydraulic oil filter replacement, it reduces downtime and operating costs.
